Top

Components:

  1. Part C-1
  2. Stepper motor
  3. 4 connectors stepper-screws
  4. 4 screws
  5. 4 packing rings
  6. 4 loading cells
  7. 8 screws for loading cell
  8. 8 packing rings for loading cells
  9. 1 PCB for connections between loading cells and bioreactor main PCB
  10. 4 connectors PCB-screws.
  11. 4 screws for PCB
  12. 4 packing rings

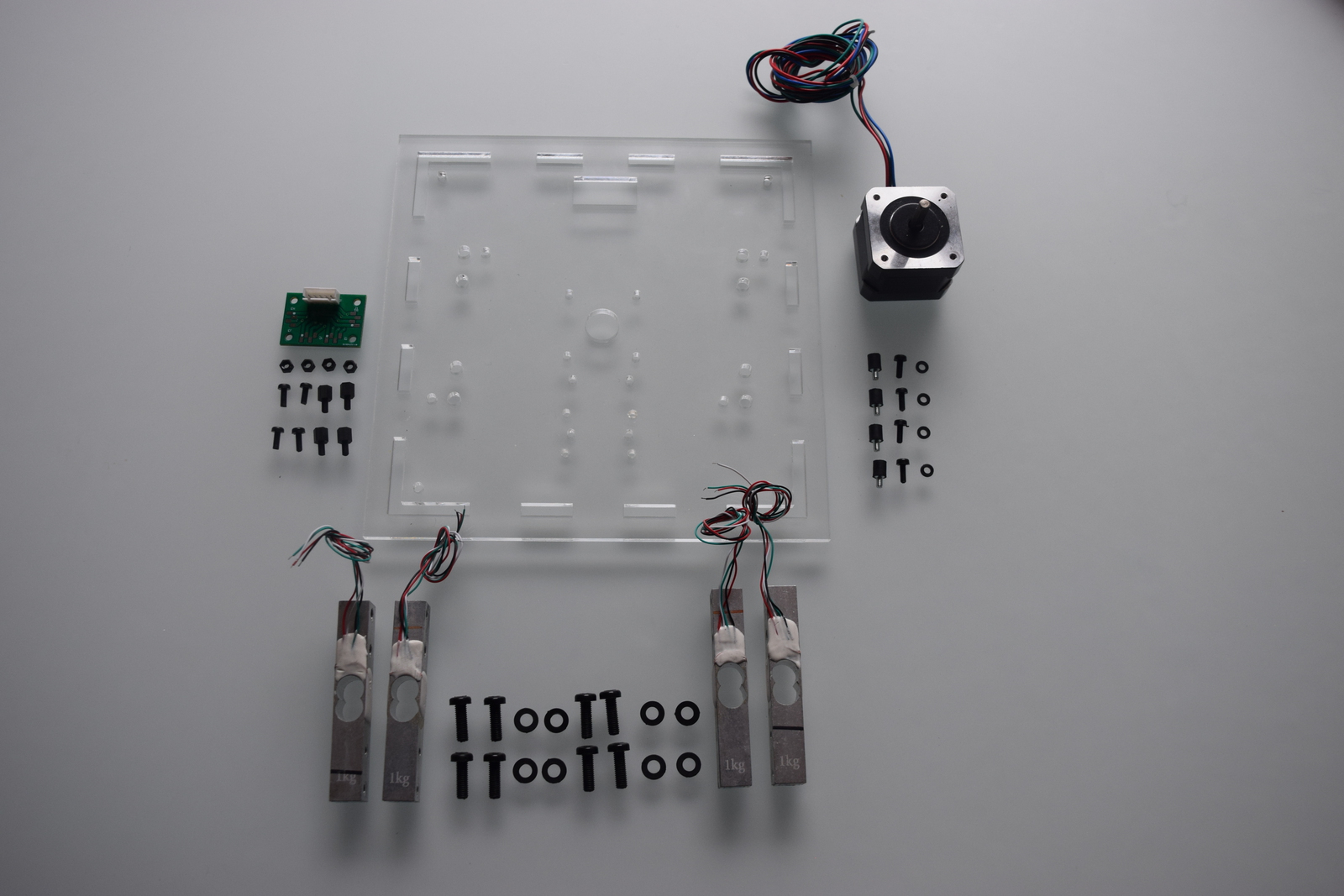

Components for top

Loading cells​

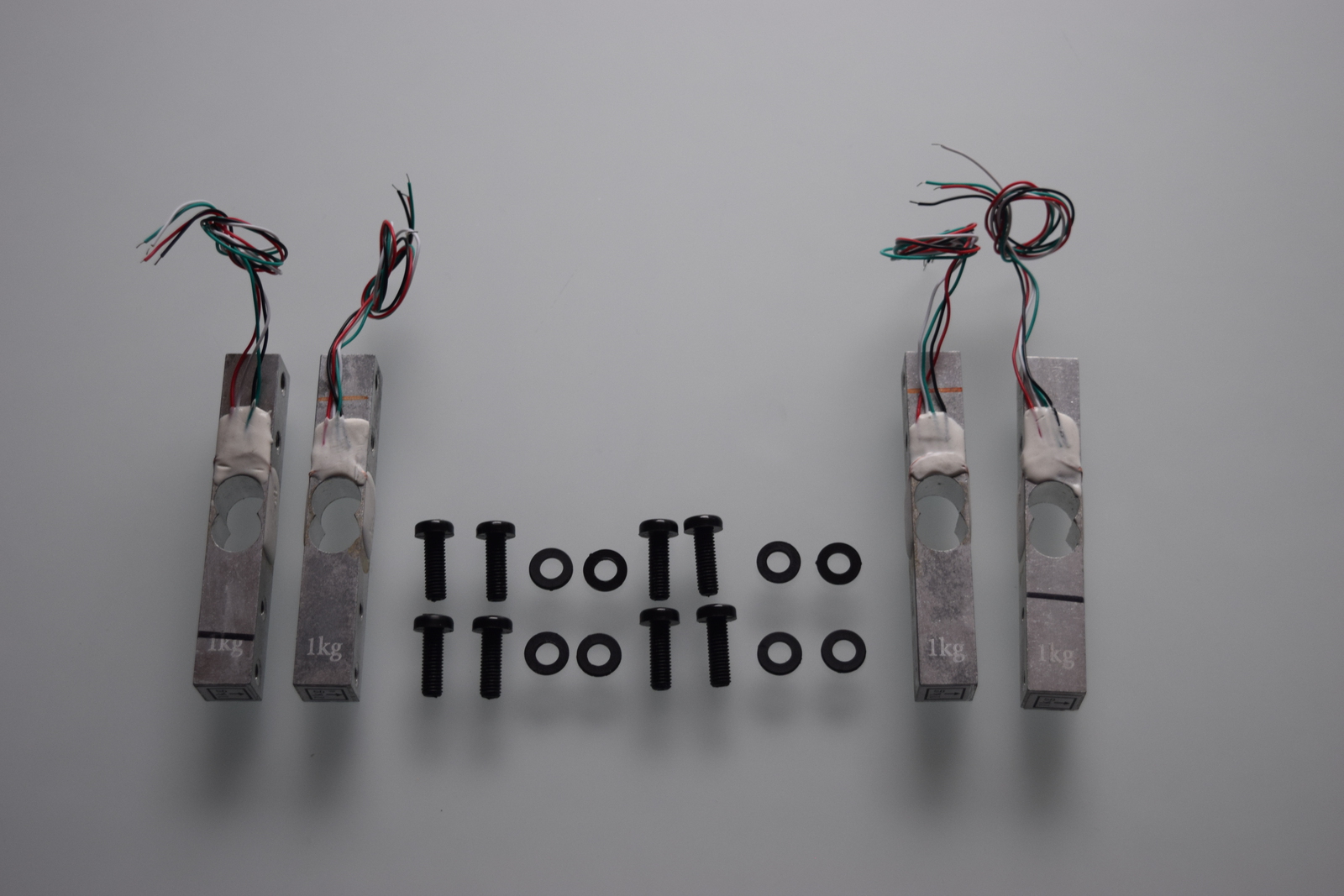

Components for loading cells

note

To avoid any pressure on load cells, you need to put the packing rings between loading cell and case.

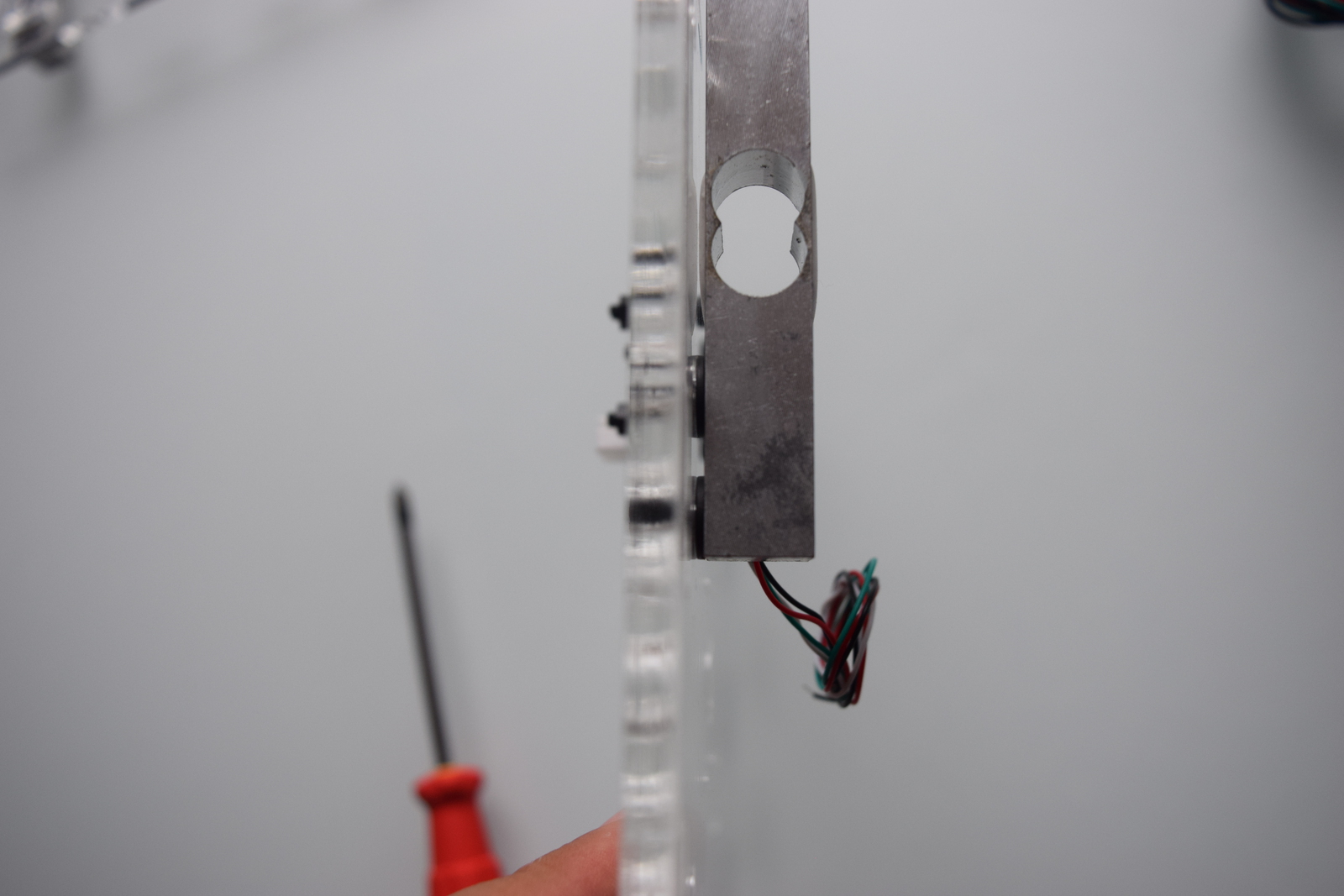

Loading cells connection A

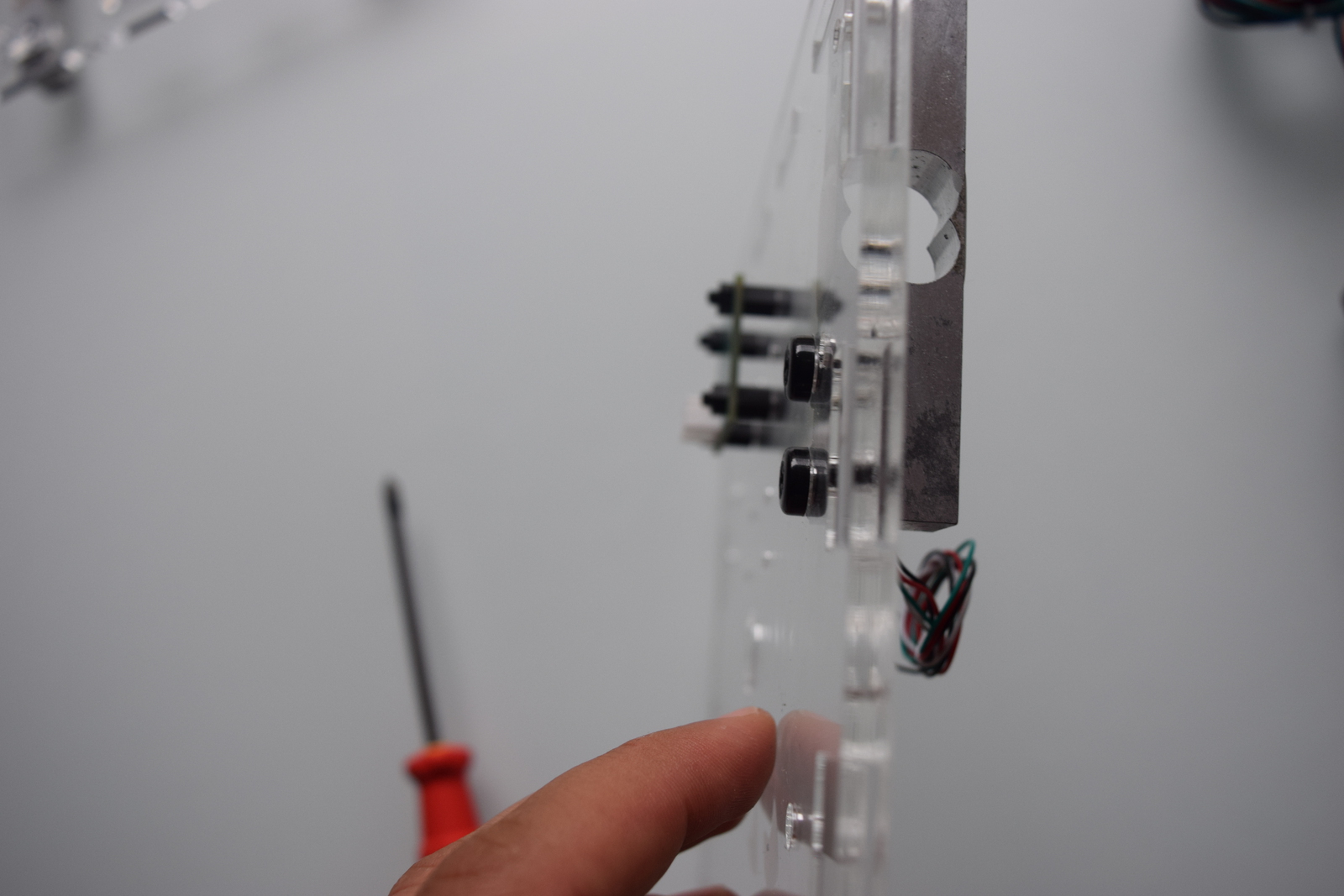

Loading cells connection B

caution

Take care! There is only one correct conection between the loading cells and case, if you connect for the incorrect side, you have problems with PCB connection.

note

Look the hole positions for every loading cell cable.

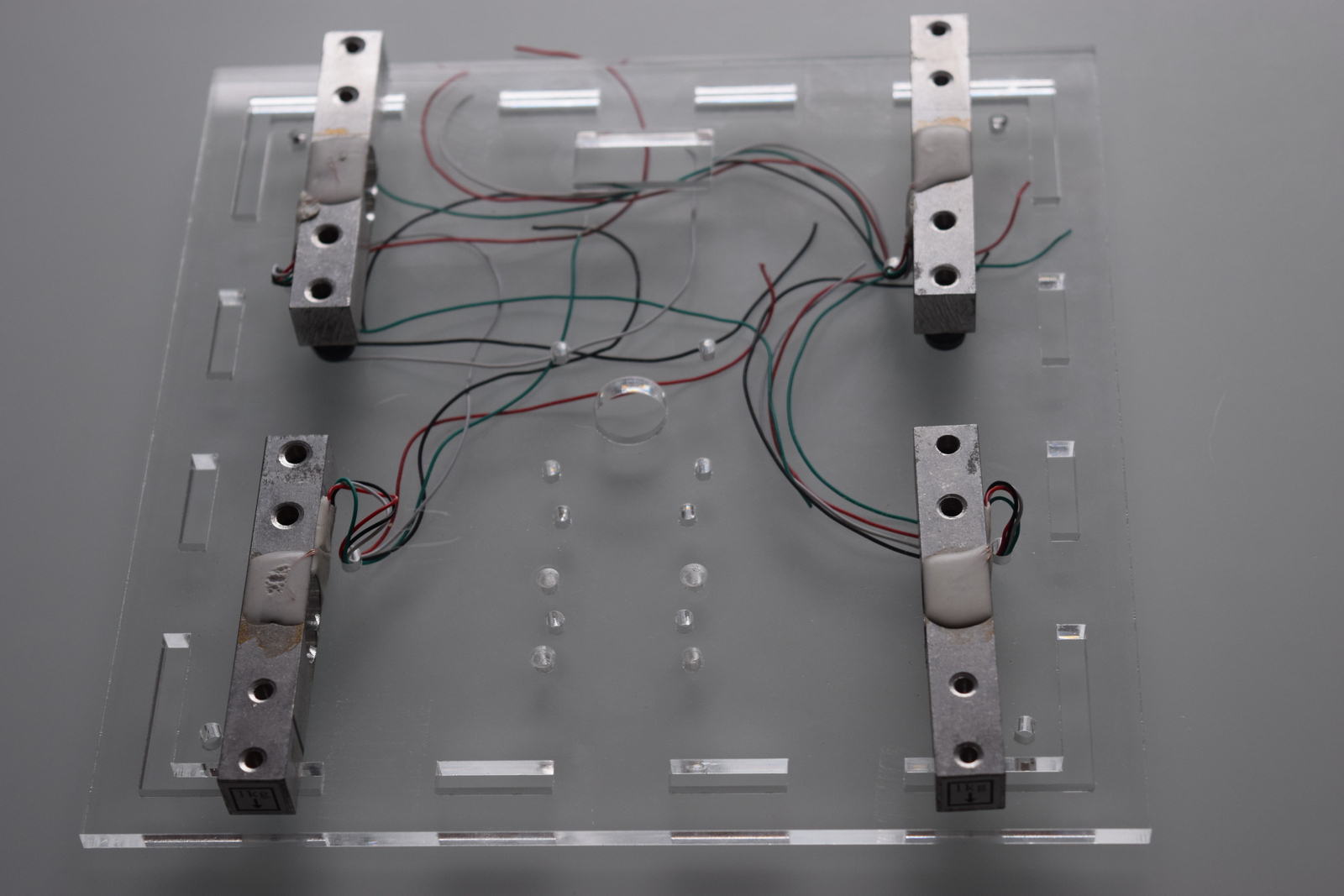

Final connection for Loading cells

Loading cell connection board​

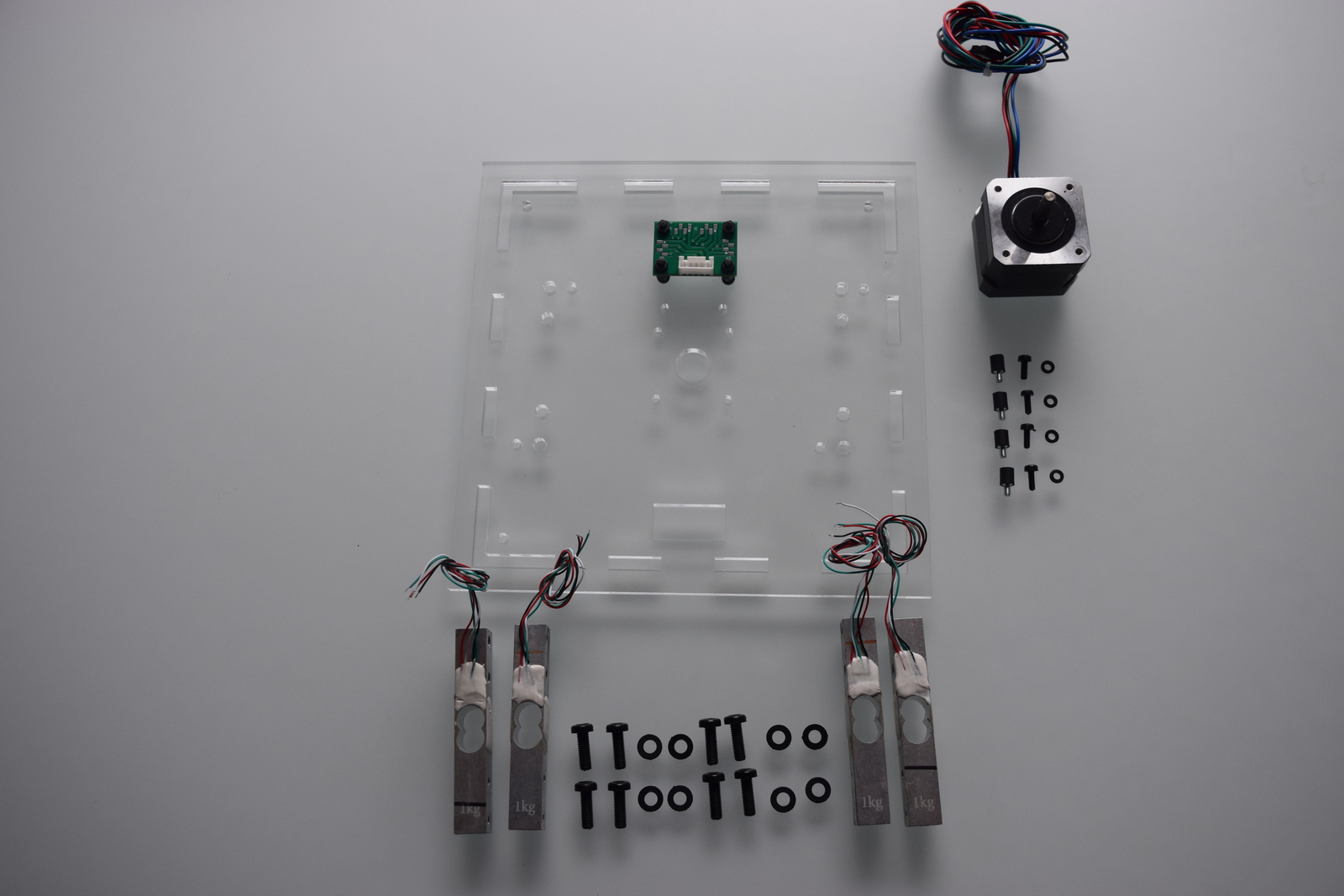

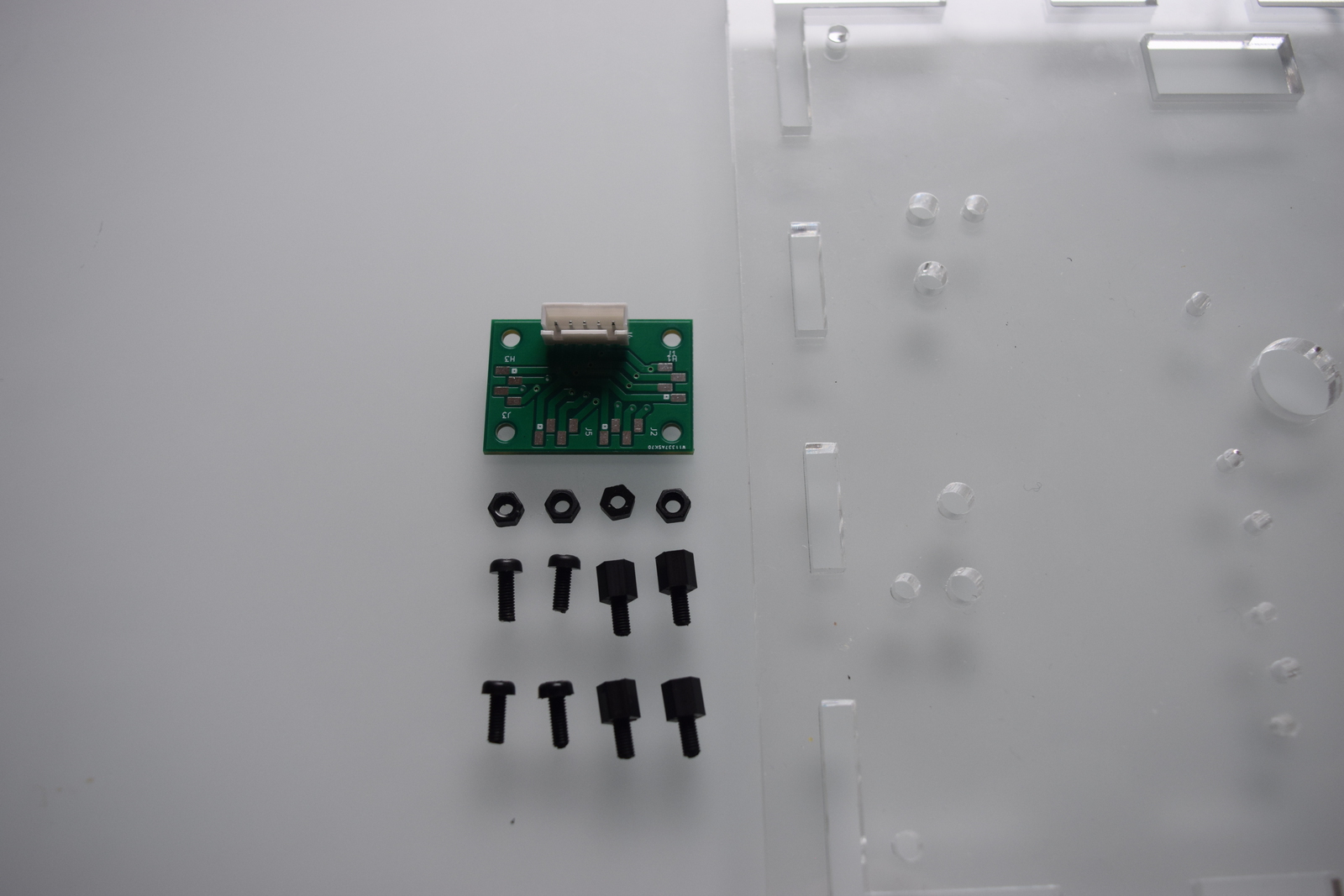

Board connection for Loading cells

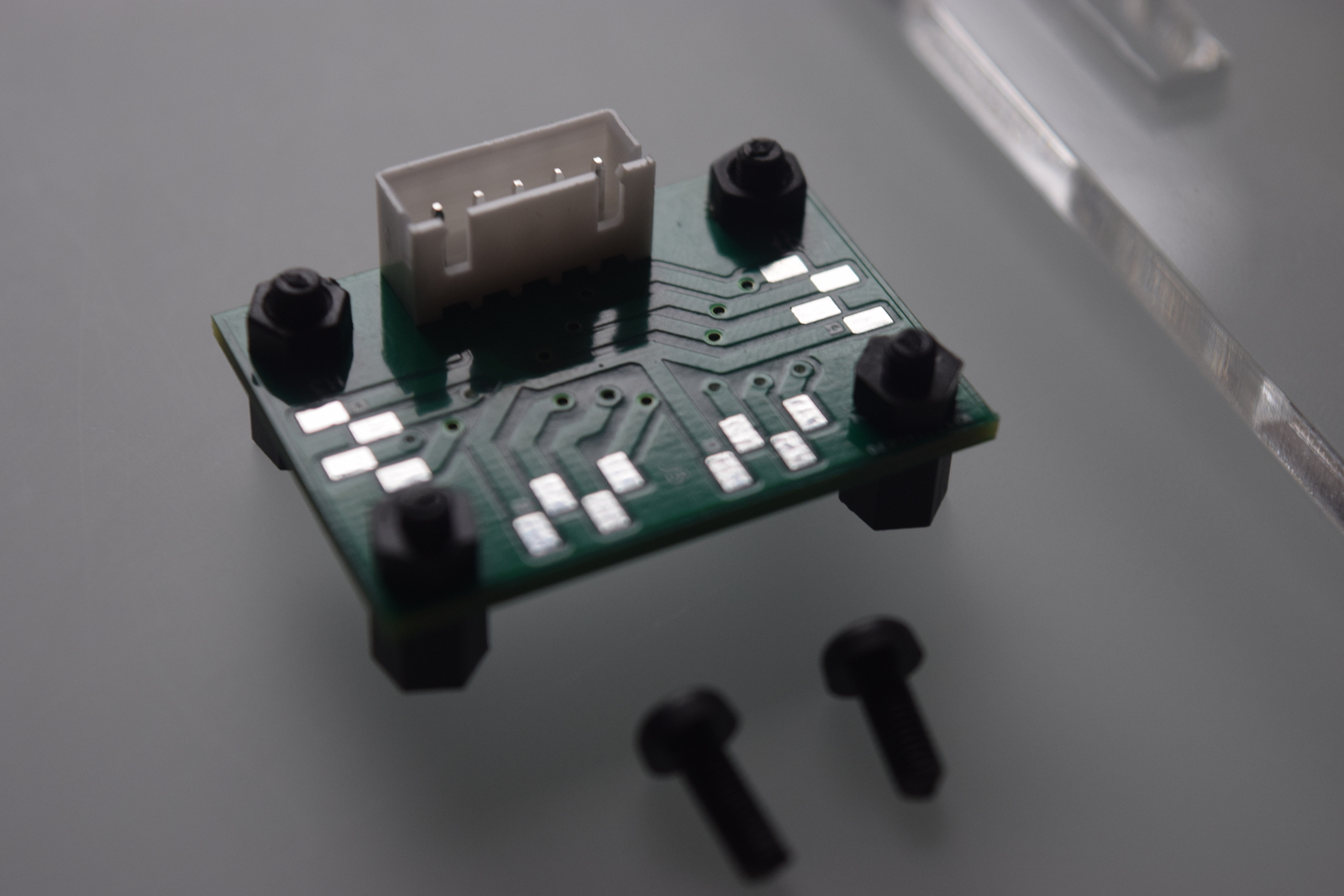

Top view for loading cell board

Board connection for Loading cells

Stepper​

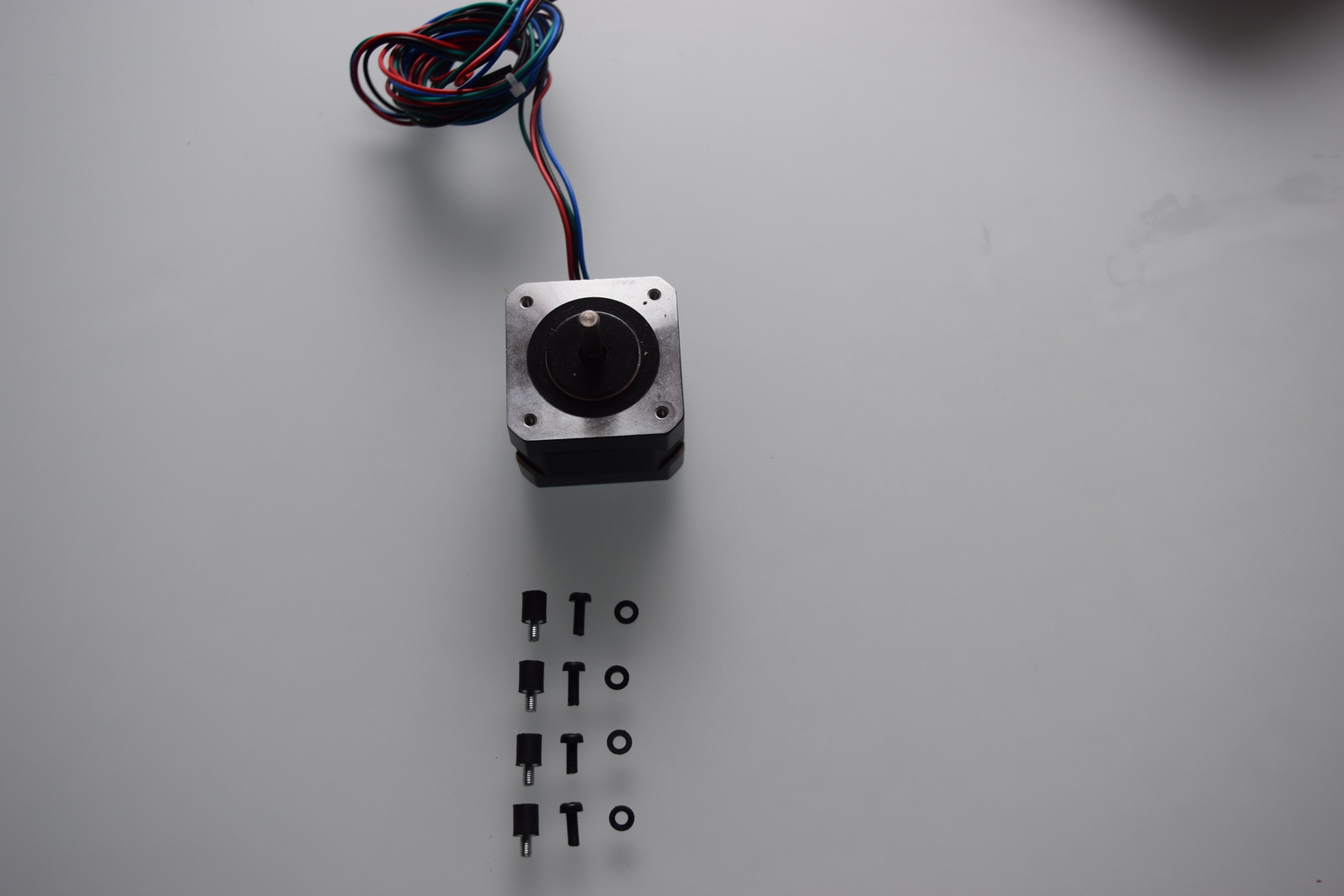

Components for stepper

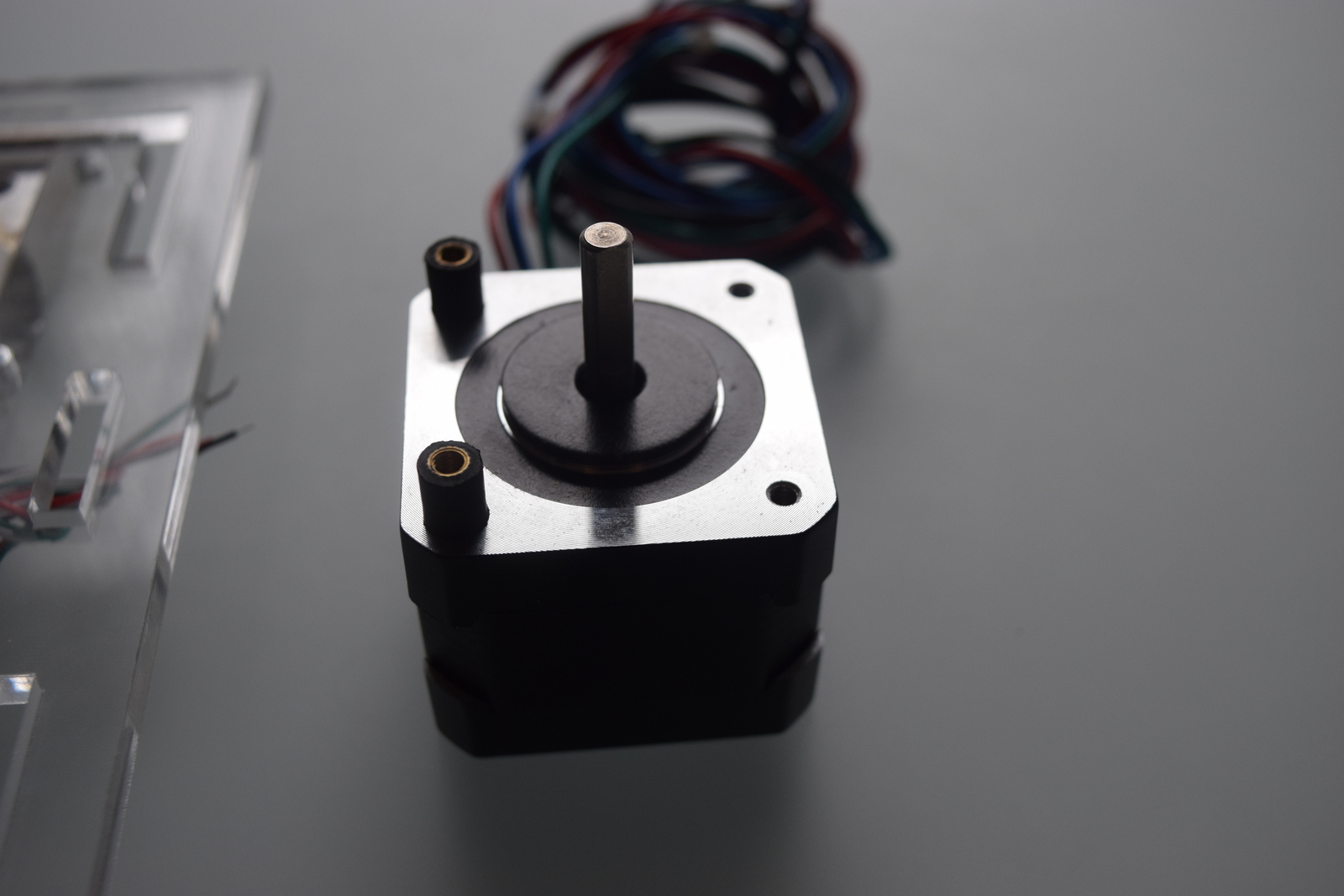

First connection for stepper A

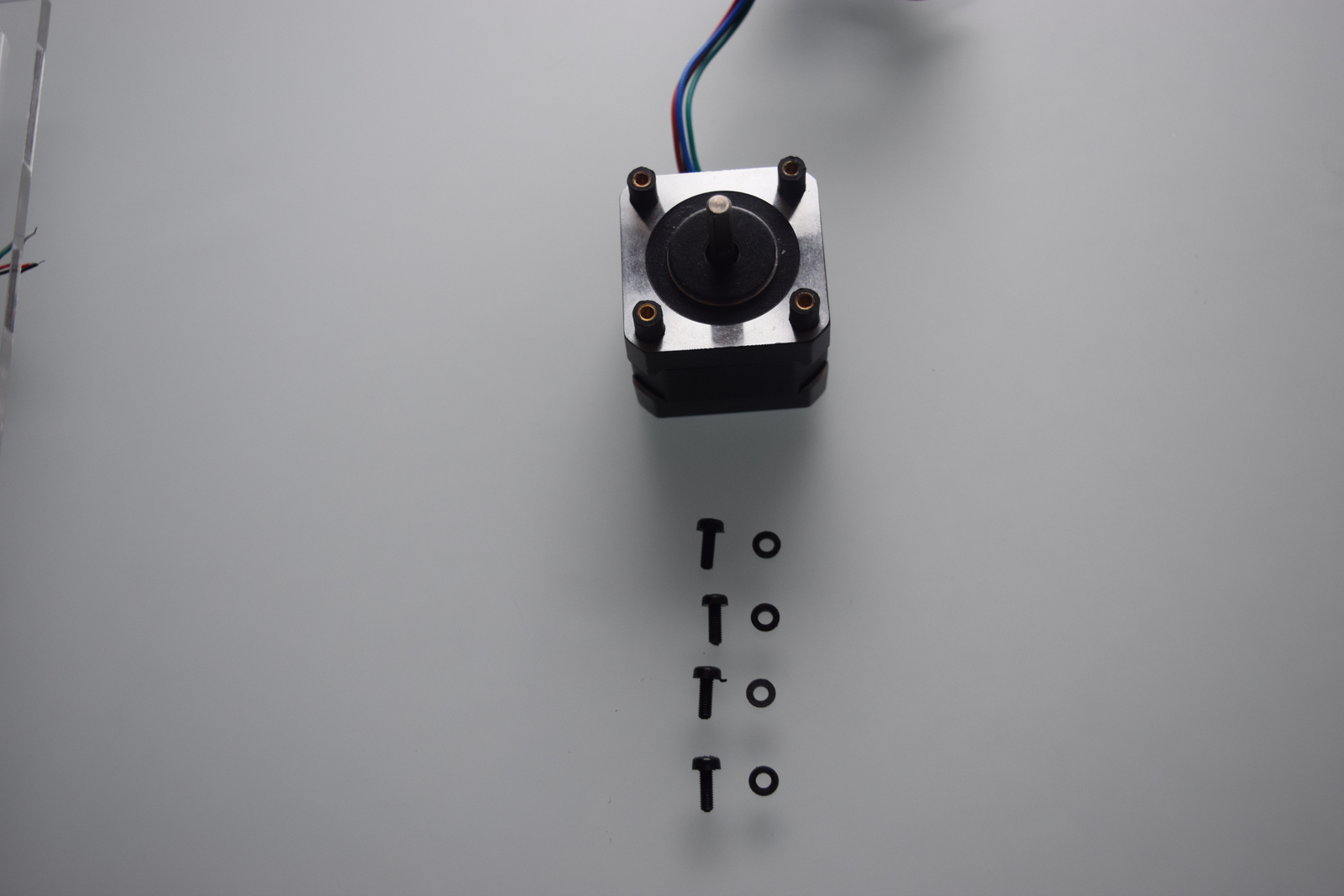

First connection for stepper B

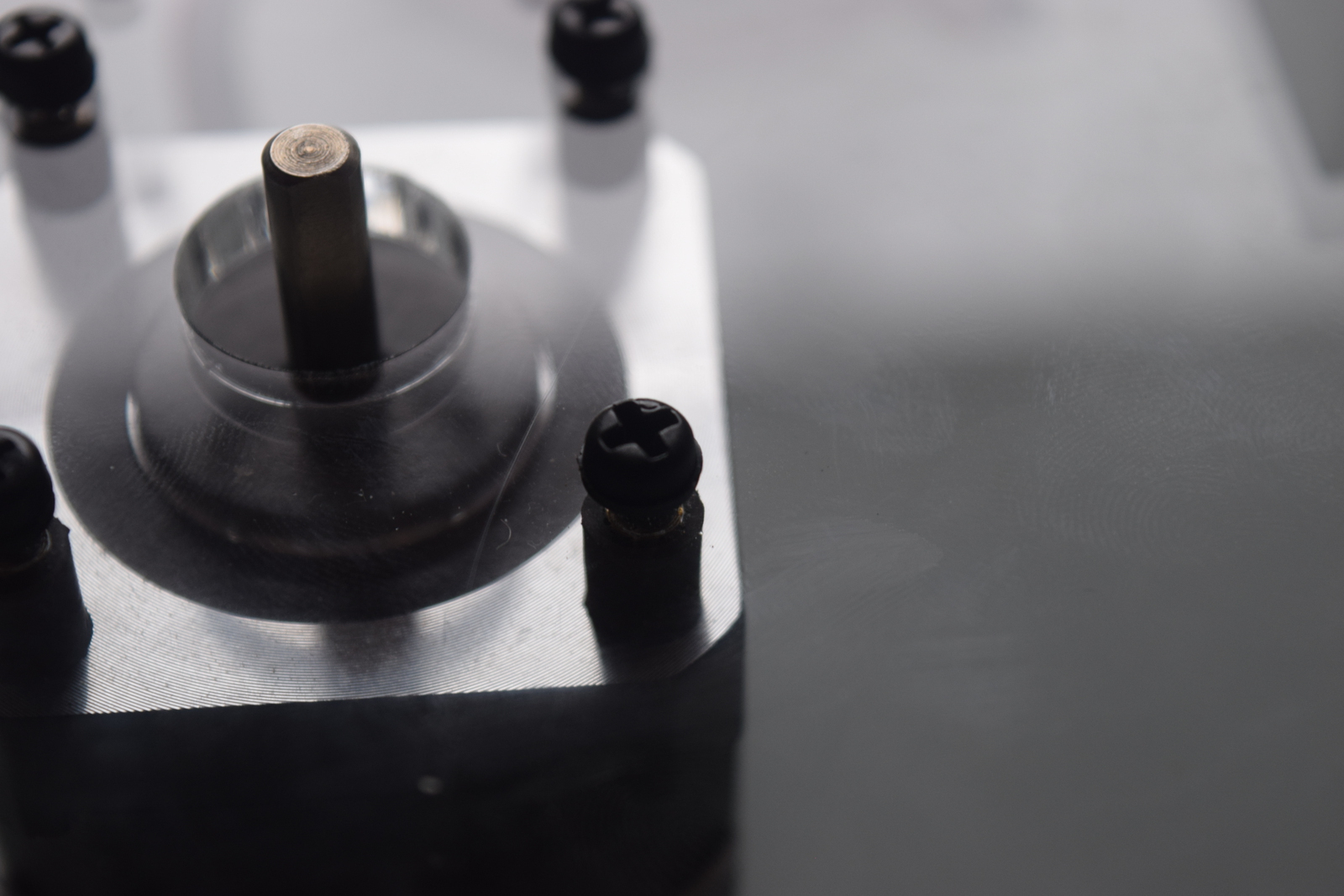

Connection for stepper in case

Agitation​

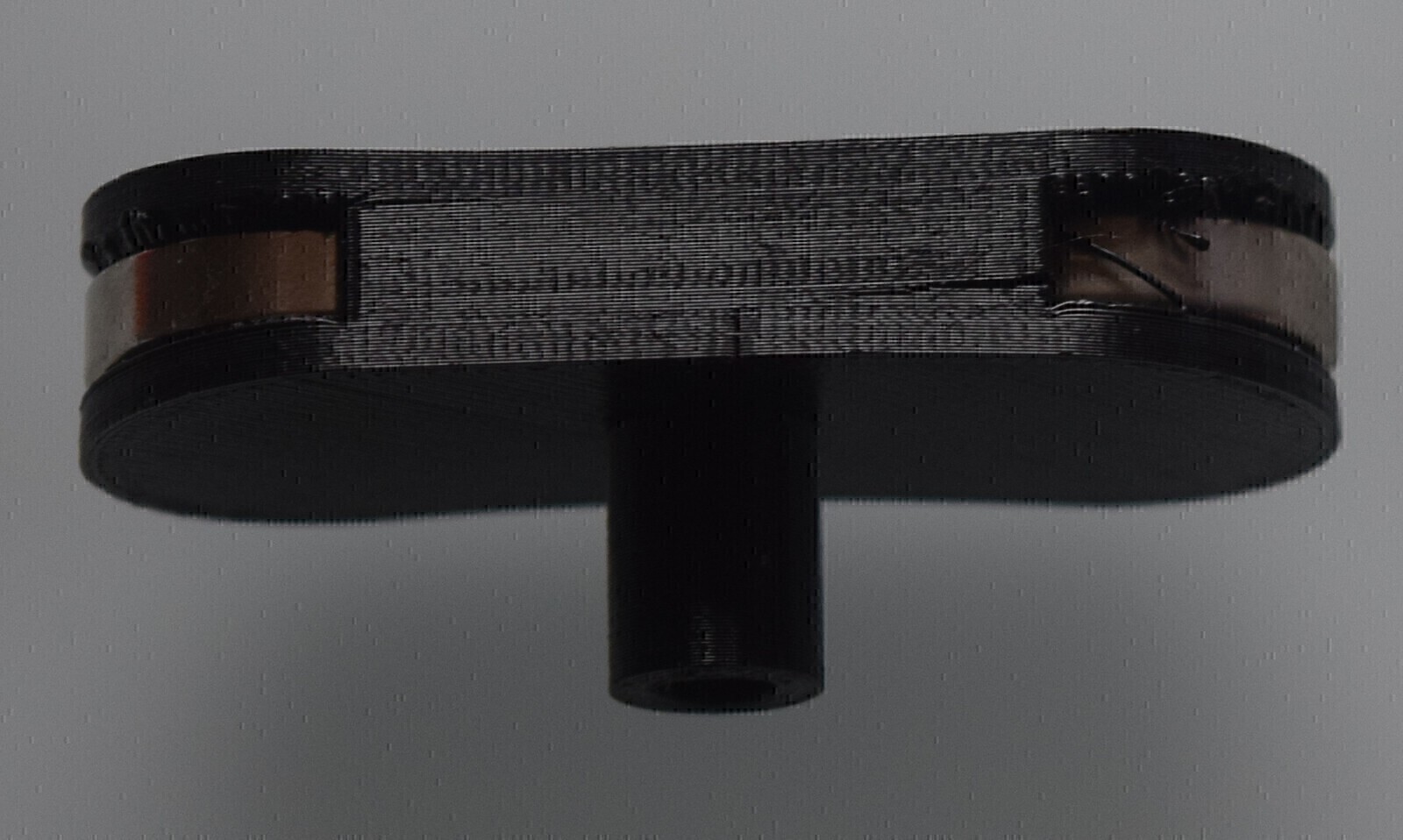

Agitation for stepper

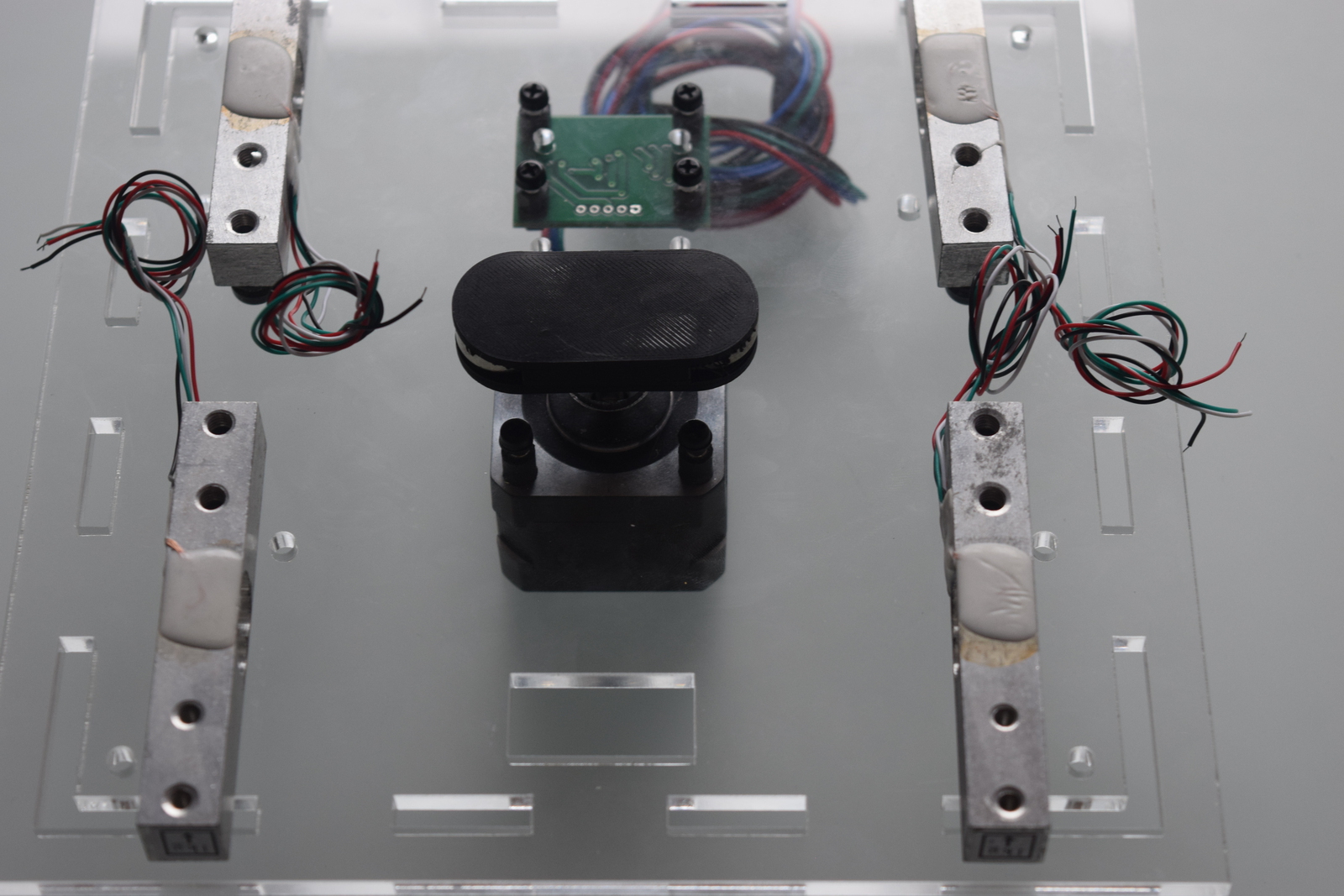

Agitation + stepper

Solder loading cells​

Soldering loading cells to PCB
